Technical Specifications

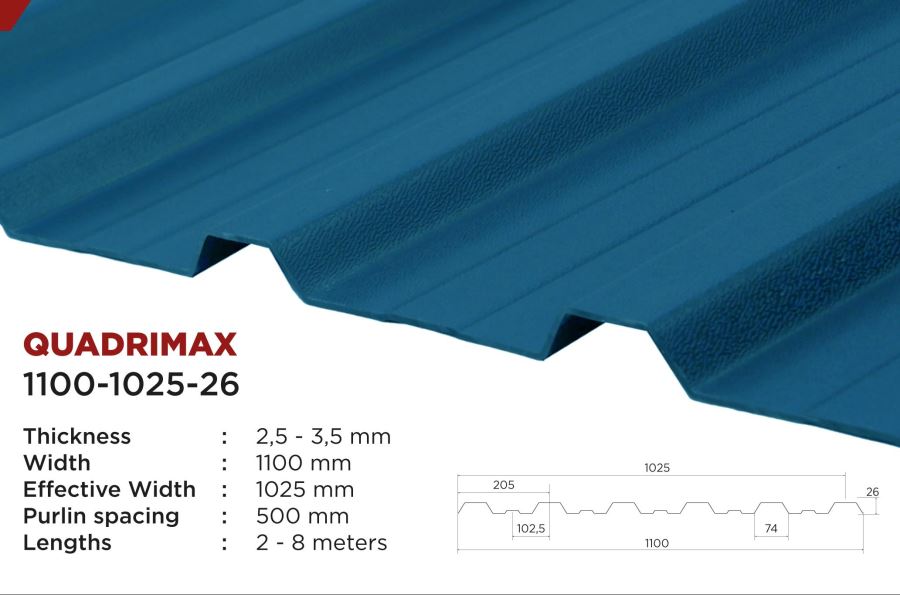

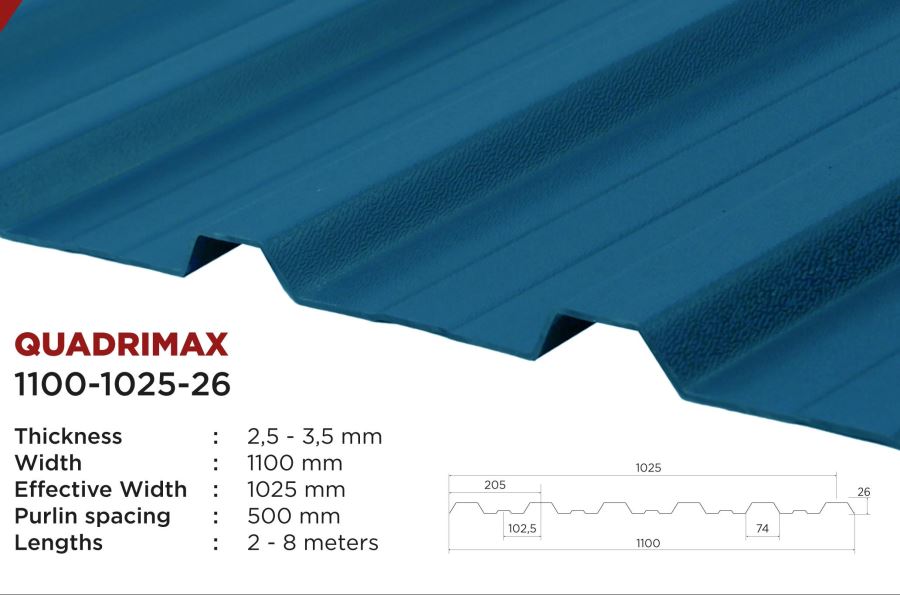

Product Name Quadrimax
Reference 1100-1025-26
Number of Waves 6
Thickness 2.5mm / 3.0mm / 3.5mm
Layer Reinforcements 4 Layers (Co-Extruded)
Width 1100mm
Net Coverage 1025mm
Recommended Purlin range 50 cm
Available Lengths From 1m to 7m
Weights Thickness 2.5mm : 5kg/m2
  Thickness 3.0mm : 6kg/m2
  Thickness 3.5mm : 7kg/m2
UV Resistant ASA ISO 4892-2, CYCLE1, 144DH - PASS
Temperature Resistance -40ᵒC / +70ᵒC
Heat Insulation 0.030927 W/Mk   (Sandwich Panel Grade)
Flammability UL94 (Class B), 5VA
Sound Insulation Upto 97%
Weatherability All weather Premium Acrylic ASA
Certificates ISO9001 / ISO14001 /CE (CQ-CE-22.02)
